| Specifications |
Built-in two split AHD/DVR intergrated display |
Built-in four segment AHD/DVR intergrated display |
| Screen Size |
7''9''10.1'' HD digitla screen |
| Resolution |
1024*R.G.B*600 |
| Back Light |
LED, 500-700cd/㎡ |
| View angle |
L/R: 180°, UP: 180°, Down: 180° |
| Compatible system |
PAL / NTSC |
| OSD control |
Color, Brightness, Contrast, Volume, Language, |
| DVR Recording format |
1280*720P, 1280*960P, 1280*1080P, 960H. Storage format: AVI |
| Memory interface |
1 SD interface |
| Video storage |
SD high-speed card, support 256G maximum (Please use the genuine SD card with reading speed of more than 10M/S). Support automatic coverage and loop recording |
| Video Input |
2channels video input simultaneously |
4 channels video input simultaneously |
| Audio input |
1 channel audio input (optional) |
| Signal compatibility |
AHD720P@25/30, 960P@50/60, 1080P@25/30 CVBS input 960H |

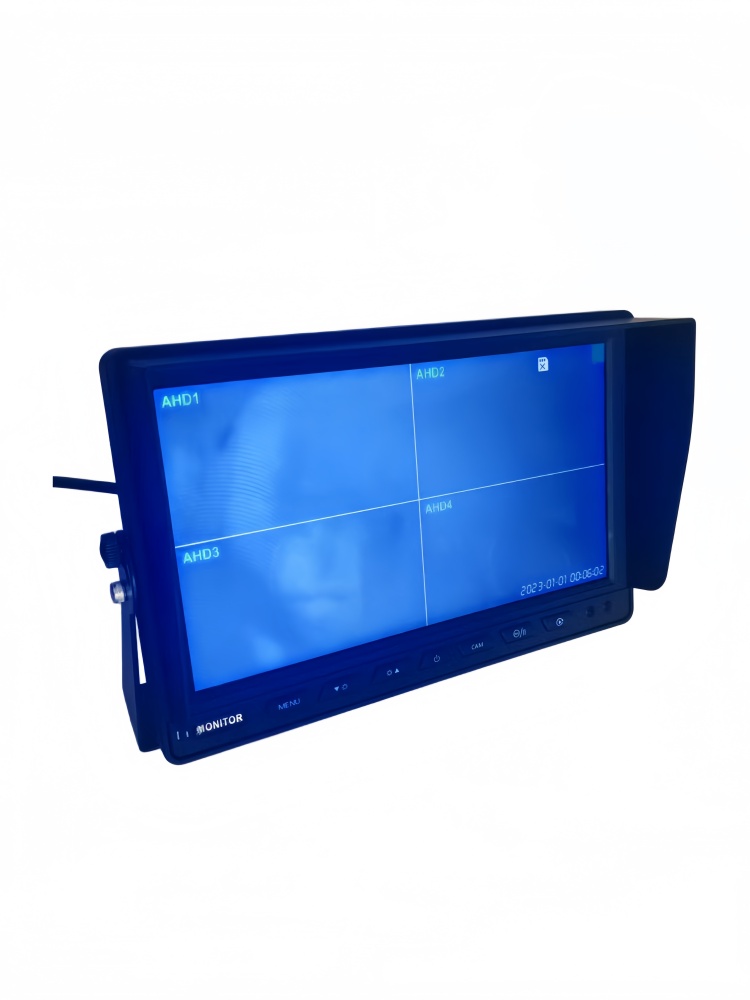

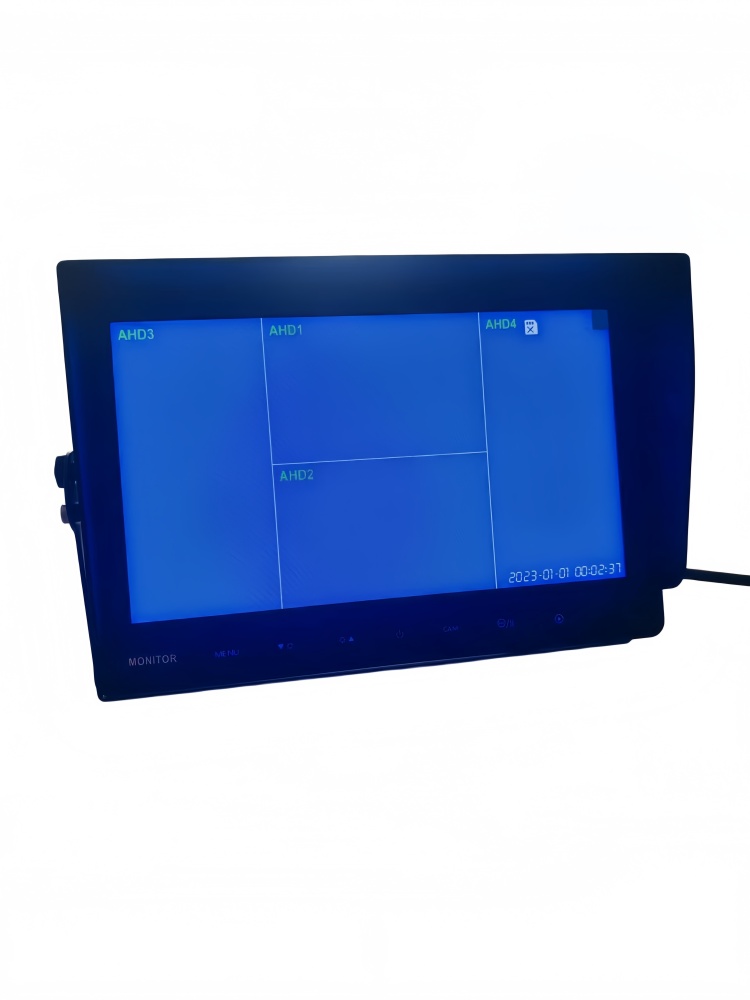

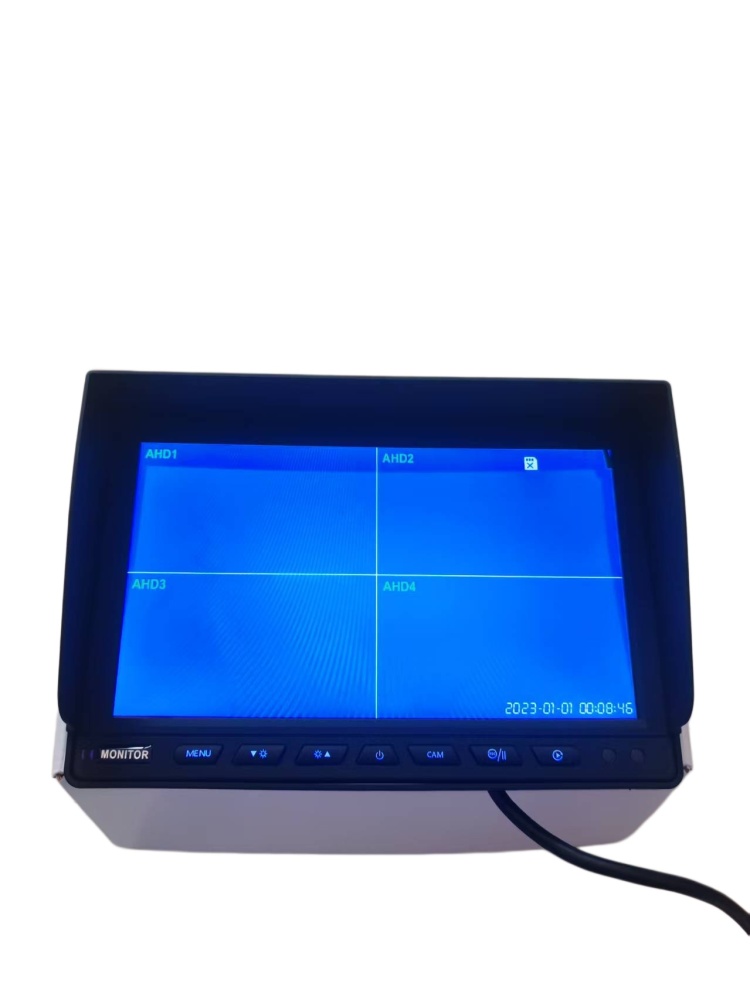

| Segmentation mode |
2 split image/screen, single channel switching |
2/3/4 screen segmentation, single channel switching |
| Reverse trigger |
Reversing automatically switches toV2,
with its own reversing ruller |
4-way trigger priority: V2>V1>V3>V4,
with its own reversing ruller |
| Input voltage |
DC 12V ~ 36V (For operation with a camera, the required input voltage is 13V and above ) |
| Output voltage |
DC+11.5V/3A |
Monitor and camera
connector |
RCA / 4pin connector for option |

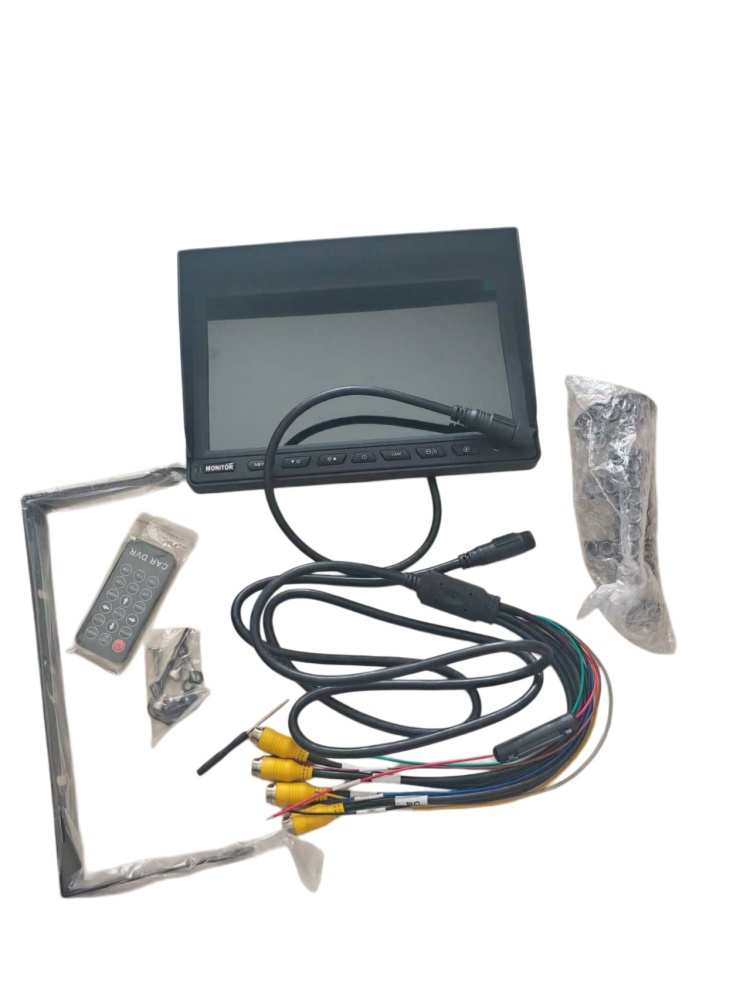

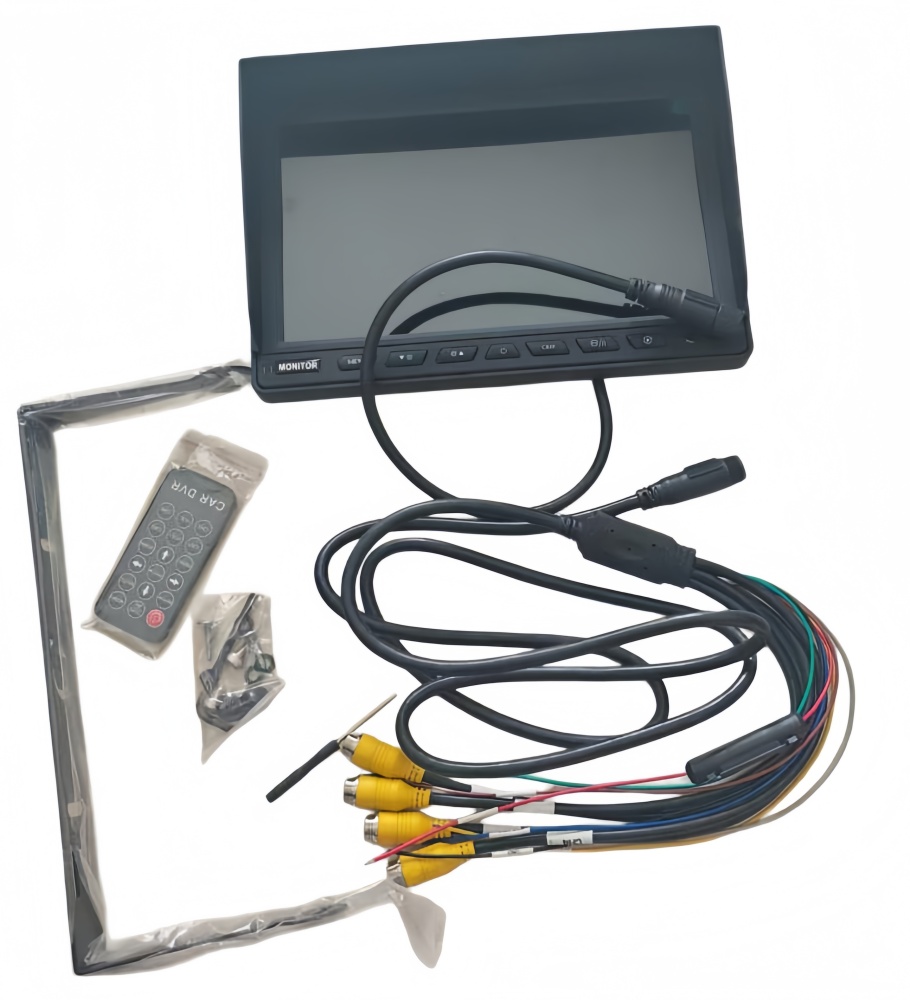

| Accessories |
Power cord, remote controller, user manual, bracket , removable sunshade, screws etc. |
| Package |
Box dimensions: 29.7*19.3*11.1cm, G.W / Box: 1.55kg / 1.75kg with addtional hanging bracket |
